ARAMID Sewer pip

ARAMID 내충격 PVC 하수관

ARAMID PVC Sewer pip specificity

  • Public Procurement Service Excellent Product
  • PVC Improving the strength of a drainpipe..
  • Unequal settlement and strong in shock.
  • Construction can be brief..
  • Conveyance ratio is excellent and scale does not occur.
  • Addressing the disadvantage of many times must be connected.
  • PVC quality of the material, Life is semi-permanent.

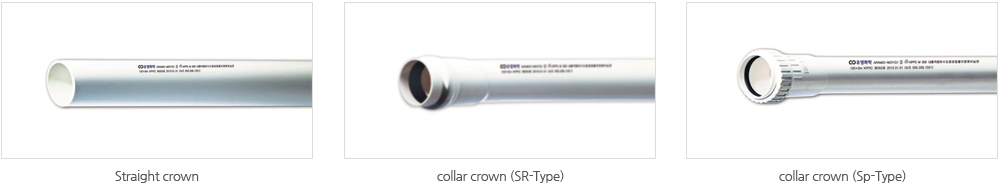

collar crown specificity

  • SR, Construction is very simple.
  • EPDM quality of the material, Durability is excellent.
  • O-Ring, Prevent foreign material inputs.

SP TYPE specificity

  • Contact was recognized as complete a watertight is guaranteed.
  • Simply attaching one touch way because access.
  • Jaesigong and reuse of materials is possible.
HP죠인트식 수도용이음관의 구조
Division Outer diameter Connection SP Connection MID-YG1(HI-VG1) MID-YG2(HI-VG2)
Nominal Basic
size		 Average out
Diameter
Tolerance		 D1
(at least)		 L
(maximum)		 e
(at least)		 L1 L2 Z d t Short-sighted
Diameter
d1 (Reference)		 Reference
weight
(kg/m)		 t Short-sighted
Diameter
d1 (Reference)		 Reference
weight
(kg/m)
at least
size		 Tolerance at least
size		 Tolerance
100 114 ±0.4 114.5 145 42 88±2 55±2 3 114.55 6.60 +1.0 100 3.339 3.1 +0.8 107 1.701
125 140 ±0.5 140.6 155 44         7.00 +1.0 125 4.371 4.1 +0.8 131 2.682
150 165 ±0.5 165.7 165 47 124±2 80±2 4 165.85 8.90 +1.4 146 6.562 5.1 +0.8 154 3.859
200 216 ±0.7 216.9 185 52 165±2 115±2 4 217.30 10.30 +1.4 194 9.919 6.5 +1.0 202 6.435
250 267 ±0.9 268.1 205 57         12.70 +1.8 240 15.159 7.8 +1.2 250 9.555
300 318 ±1.0 319.5 225 62         15.10 +2.2 286 21.506 9.2 +1.4 298 13.417
